I-V curve test for solar panel/module

Max. solar panel power (Pmax) search by auto-scan:
PROVA 200A: 60V, 6A (180W capability)

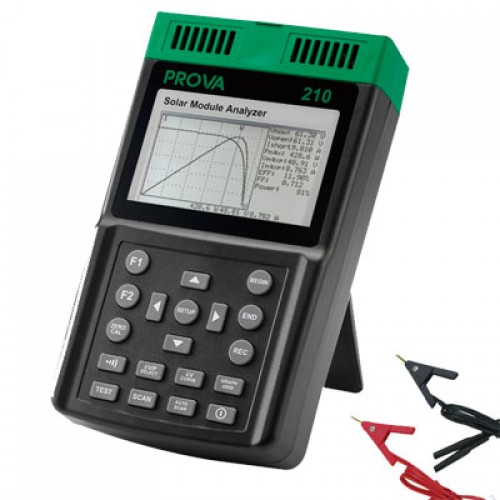

PROVA 210: 60V, 12A (500W capability)
PROVA 218: 85V, 8.5A (500W capability)

Best resolution for PROVA 200A: 1mV, 0.1mA

Best resolution for PROVA 210/218: 1mV, 1mA

Manual single point I-V test

Max. voltage (Vmaxp) at Pmax

Max. current (Imaxp) at Pmax

Voltage at open circuit (Vopen)

Current at short circuit (Ishort)

I-V curve with cursor to display each data point

Efficiency (%) calculation of solar panel

Solar panel area setting: 0.001 m2 ~ 9999 m2

Standard light source setting: 10 W/m2 ~ 1000 W/m2

Communicate with PC via USB cable

Min. power setting for alarm function

Built-in calendar clock

Built-in battery charging circuit

Rechargeable lithium battery and AC power adaptor

Memory size: 100 records

Sampling time of data logging for PROVA 210/218: 0 ~ 99 min.

Large LCD with backlight

Electrical Specifications: (PROVA 200A)
(23℃±5℃, four-wire measurement, the max. power limit is 180W)

DC Voltage Measurement:

Range	Resolution	Accuracy of Reading
0 ~ 6 V	0.001 V	±1% ± (1% of Vopen ± 9mV)
6 ~ 10 V	0.001 V	±1% ± (1% of Vopen ± 0.09V)
10 ~ 60 V	0.01 V	±1% ± (1% of Vopen ± 0.09V)

Vopen: open circuit voltage of solar cell or module.

DC Current Measurement:

Range	Resolution	Accuracy of Reading
0.01 ~ 0.6 A	0.1 mA	±1% ± (1% of Ishort ± 0.9mA)
0.6 ~ 1 A	0.1 mA	±1% ± (1% of Ishort ± 9mA)
1 ~ 6 A	1 mA	±1% ± (1% of Ishort ± 9mA)

Ishort: short circuit current of solar cell or module.

Internal Resistance at Ishort: 0.05 Ohm.

DC Current Simulation*

Range	Resolution	Accuracy of Reading
0.01 ~ 1 A	0.1 mA	±1% ± 0.9mA
1 ~ 6 A	1 mA	±1% ± 9mA

* If current is greater than 6A, test (Auto-Scan, Scan, or Test) can not be performed.

* Max. duration of simulation is 9.999 seconds if power is less than 100W.

* Duration of simulation is 10m seconds if power is greater than 100W.

Electrical Specifications: (PROVA 210/218)

(23℃±5℃, 4-wire measurement, max. power limit 500W)

DC Voltage Measurement:

Range

Resolution

Accuracy

0 ~ 10 V

0.001 V

±1% ± (1% of Vopen ± 0.1V)

10 ~ 60 V (PROVA 210)

10 ~ 85 V (PROVA 218)

0.01 V

Vopen: open circuit voltage of solar cell or module.

DC Current Measurement:

Range

Resolution
