Display | LCD display, 4 digit LCD reading |
Range | 2000 W/m2 634 Btu / (ft2 x h) |
Resolution | 0.1 W/m2 0.1 Btu / (ft2 x h) |
Spectral response | 400-1100nm |
Accuracy | Typically within ±10 W/m2 [±3 Btu / (ft2 x h)] or ±5%, whichever is greater in sunlight ; Additional temperature induced error ±0.38 W/m2/℃ [±0.12 Btu / (ft2 x h)/℃] from 25℃ |
Angular accuracy | Cosine corrected <5% for angles < 60° |
Drift | < ±2% per year |
Calibration | User recalibration available |
Over-Input | Display shows “OL” |
Sampling Rate | 4 times/sec |
Manu Data Memory and Read | 99 sets |
Auto Data Memory | 43000 sets (TES-1333R) |
Battery | 4 pcs size AAA |
Battery Life | Approx. 100 hours |
Operating Temp and Humidity | 0℃ to 50℃ (32℉ to 122℉) below 80%RH |
Storage Temp and Humidity | -10℃ to 60℃ below 70%RH |
Weight | Approx. 158g |
Dimension | 110(L) × 64 (W) × 34(H) mm |
Accessories Included | Manual, 4 pcs size AAA, (RS232 Cable, CD software→TES-1333R) |

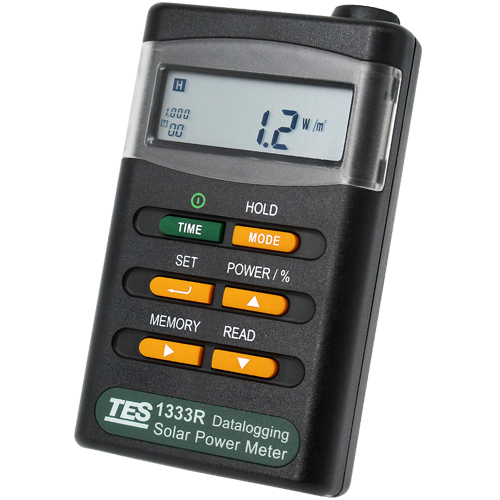

TES-1333R Solar Power Meter
- Brand: TES
- Product Code: TES-1333R
- Availability: In Stock
-
Rp.0.00
- Ex Tax: Rp.0.00
