Product Parameters

• Pressure Ranges: From -1 to 3 bar up to 1000 bar gauge and absolute
• Accuracy: 0.1% FS at room temp, 0.2% FS including 0 to 50°C temp errors
• Display: 41/2 digit LCD
• Power Supply: 3V battery, type CR2430, 1000 hours continuous battery life in Mano mode, 150 hours in peak mode
• Dimensions: 76mm x 118mm x 42mm
• Weight: approx 210 g
• Environmental Protection: IP65
• Pressure Connection: G1/4 male
• Special Features: Zero tare, 6 choices of pressure units, high dynamic response peak mode
• Special Options: ATEX approved version available II 1 G EEx ia IIC T6 or T5 (excluding vented gauge pressure ranges) and protective rubber boot impact cover, flush face diaphragm, traceable to international standards or UKAS laboratory calibration cert

Product Description

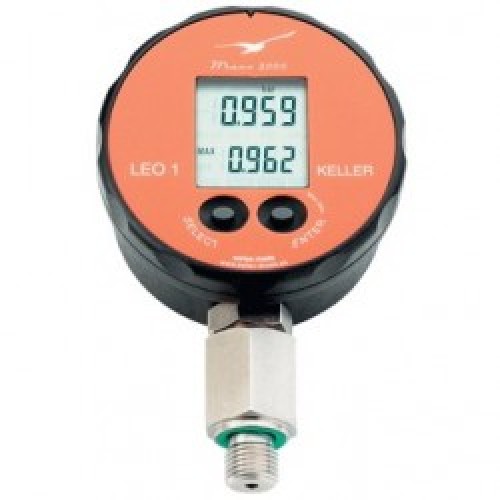

The LEO 1 digital pressure gauge features 6 pressure units, rotatable display, zero tare & peak hold display functions and optional ATEX approval for intrinsic safety.

LEO 1 digital pressure gauge can be permanently mounted as an alternative to an analogue dial pressure gauge or used as a convenient portable digital pressure test gauge.

The LEO1 digital pressure gauge features a low powered LCD display to conserve battery life, a maximum or minimum value which can be displayed simultaneously with the live pressure reading and an auto timeout which can be deactivated if necessary for continuous reading.

For hazardous zones the LEO-1-Ei digital pressure gauge is ATEX approved for intrinsic safety.

Download Datasheet
