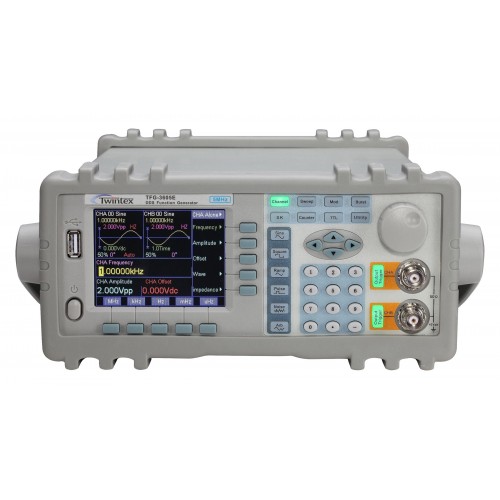

The TFG3600E series are arbitrary waveform/function generators with maximum frequency of 5MHz, 10MHz, 15MHz and 20MHz, based on Direct Digital Synthesis (DDS) technology providing flexible performance and system features for basic scientific and industrial requirements.

The 8 bits resolution, 100MSa/s sampling rate, 1024 pts memory length, 32 built-in waveforms and 8 user-defined arbitrary waveforms create various waveforms for different needs. Free PC software for RS-232 interface control. The TFG3600E series have additional functions of multiple modulations FM, FSK, ASK and PSK, 200MHz external frequency counter, 40 sets memories and multiple protections. Stable output frequency, high accuracy and low distortion make TFG3600E series an ideal solution for an accurate and affordable signal source for industrial, scientific research and educational applications.

·         Max. output frequency 5MHz/10MHz/15MHz/20MHz

·         2 output channels

·         3.5-inch TFT LCD display

·         Direct Digital Synthesis technology (DDS)

·         Min. output amplitude 1mV (50Ω) with good stability

·         Sampling rate 100MSa/s, vertical resolution 8 bit, waveform length 1024 points

·         Arbitrary waveform function

·         32 built-in waveforms and 8 user-defined arbitrary waveforms

·         40 sets save & recall for panel settings

·         Modulations: FM, FSK, ASK, PSK

·         Frequency sweep, amplitude sweep, burst and TTL output functions

·         Over voltage, over current, short circuit and reverse voltage protections

·         High speed rotary dial and keypad input

·         Standard RS-232 interface for PC remote control

·         Standard 200MHz external frequency counter

·         Optional power amplifier
