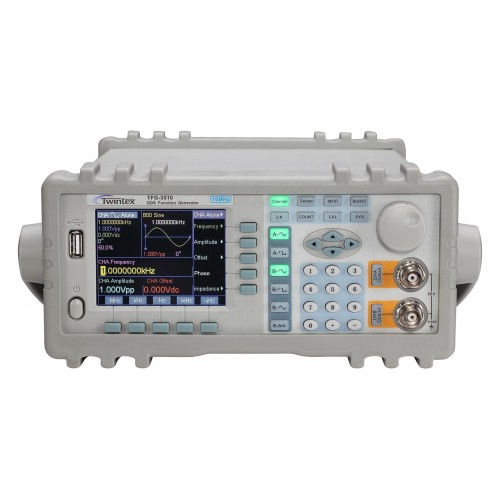

The TFG3500 series are function generators with maximum frequency of 10MHz, 20MHz, 40MHz and 60MHz, based on DDS (Direct Digital Synthesis) technology providing flexible performance and system features for basic scientific and industrial requirements.

The10 bits resolution, 180MSa/s sampling rate, 16k pts memory length, and 32 built-in waveforms create various waveforms for different needs. A free PC software for USB and RS-232 interfaces for system control. The TFG3500 series have additional functions of multiple modulations (FM, AM, FSK, ASK, PSK), 200MHz external counter, 40 sets memories and multiple protections. Stable output frequency, high accuracy and low distortion make TFG3500 an ideal solution for an accurate and affordable signal source for industrial, scientific research and educational applications.

·         Max. output frequency 10MHz/20MHz/40MHz/60MHz

·         2 output channels

·         3.5-inch TFT LCD display

·         Direct Digital Synthesis technology (DDS)

·         Sampling rate 180MSa/s, vertical resolution 10 bits, waveform length 16000 points

·         Min. 1mV (50Ω) waveform output with good stability

·         32 built-in waveforms

·         40 sets panel setting save & recall

·         Modulations: FM, AM, FSK, ASK, PSK

·         Frequency sweep, amplitude sweep, burst, CHA & CHB Add and TTL output functions

·         Over voltage protection, over current protection, short circuit protection, reverse voltage protection

·         Standard parts: RS-232 interface, USB interface, 200MHz frequency counter,
