The TFG3200 series are LOW-COST function generators with maximum frequency of 10MHz, 20MHz, 40MHz and 60MHz, based on DDS (Direct Digital Synthesis) technology providing flexible performance and system features for basic scientific and industrial requirements.
The10 bits resolution, 180MSa/s
sampling rate, 16k pts memory length, and 32 built-in waveforms create various
waveforms for different needs. Optional PC software for RS-232 interfaces for
system control, and optional 200MHz frequency counter for external signal
measuring.. The TFG3200 series have additional functions of multiple modulations
(FM, AM, FSK, ASK, PSK), 40 sets memories and multiple protections. Low-cost,
multi-functional, high accuracy, the TFG3200 series provides an ideal solution
for an accurate and affordable signal source for industrial, scientific
research and educational applications.
· Max. output frequency 10MHz/20MHz/40MHz/60MHz
· 2 output channels
· Mono LCD display
· Direct Digital Synthesis technology (DDS)
· Sampling rate 180MSa/s, vertical resolution 10 bits, waveform length 16000 points
· Min. 1mV (50Ω) waveform output with good stability
· 32 built-in waveforms
· 40 sets panel setting save & recall
· Modulations: FM, AM, FSK, ASK, PSK
· Frequency sweep, amplitude sweep, burst, CHA & CHB Add and TTL output functions
· Over voltage protection, over current protection, short circuit protection, reverse voltage protection
· Optional parts: RS-232 interface, 200MHz frequency counter,power amplifier

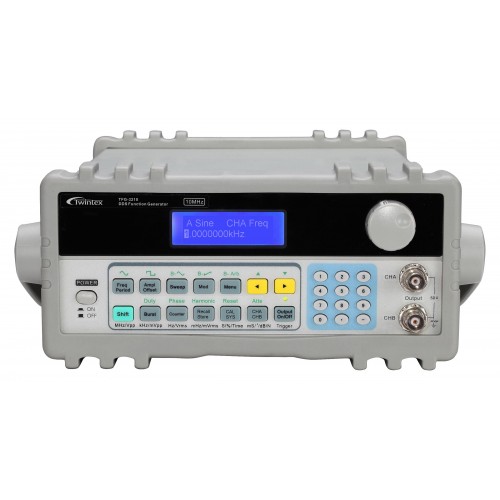

Twintex TFG3200 Series Low-Cost DDS Function Generator
- Brand: TWINTEX
- Product Code: TFG3200 Series
- Availability: Pre-Order
-
Rp.0.00
- Ex Tax: Rp.0.00
