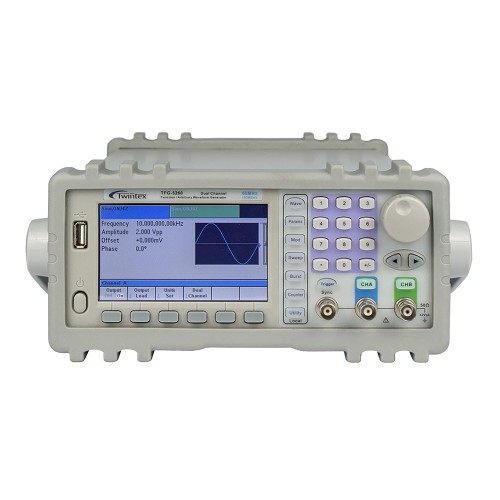

The TFG5200 series are arbitrary waveform/function generators with maximum frequency of 25MHz, 40MHz and 60MHz, based on Direct Digital Synthesis (DDS) technology, providing high fidelity, low jitter performance function signal and arbitrary waveform signal.

The TFG5200 series are equipped with 150MSa/s sampling rate, 14 bits vertical resolution, ±1ppm high stability and high accuracy waveform output, 250MHz frequency counter, as well as digital modulations of AM, DSSC AM, FM, PM, ASK, FSK, BPSK. Built-in USB device, USB host and RS232 interface support easy remote control. 4.3-inch TFT LCD display, user-friendly interface design and keyboard layout brings excellent operation experience.

·         Frequency range 1μHz~25MHz/40MHz/60MHz

·         2 independent output channels at same frequency range for main waveforms

·         4.5-inch TFT LCD display

·         Min. output amplitude 1mVpp (50Ω), total distortion 0.2%

·         Sampling rate 150MSa/s, vertical resolution 14 bits, waveform length 16k points

·         6 standard waveforms, 50 built-in waveformsand 12 user-defined arbitrary waveforms

·         10 sets save & recall for operating parameters

·         Modulations: AM, DSSC AM, FM, PM, ASK, FSK, BPSK

·         Synchronous output, external modulation input, trigger input, external reference input and count input

·         Linearity/Logarithmic sweep signal and Burst signal

·         Channel coupling, parameter (frequency, amplitude, offset, phase) coupling, point frequency replication tracking

·         Strong arbitrary waveform building software, support SCPI commands

·         Over voltage, over current, short circuit and reverse voltage protections

·         Standard interface: RS232, USB device, USB Host

·         250MHz external frequency counter
