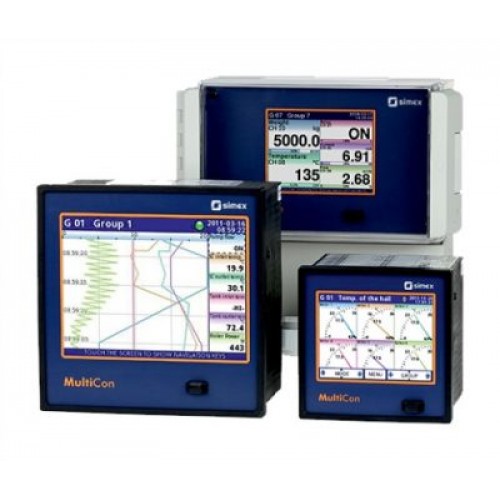

Multifunctional digital controller & datalogger for processing the signal from an extensive range of sensors for the purpose of controlling a process or recording test data.  The MultiCon has a modular design with three slots in the rear for adding analogue signal conditioning cards which can handle up to 72 signals at once.

Product Parameters

• Display: 3.5″ or 5.7″ graphic TFT, 16 bit colour, 320 x 240 pixels, touchscreen navigation
• Inputs: 72 channels max for analog (0/4-20mA, 0/1-5V or 0/2-10V) and digital, 36 max for thermocouple (J, K, S, T, N, R, B, E), 18 max for RTD
• Outputs: 8 channels max for analog (4-20mA), 8 channels max for alarm relays (1A/250V) or 4 for alarm relays (5A/250V)
• Digital Communications: USB host and device, Ethernet, RS485 (Modbus RTU), RS485 and RS232
• Data Storage: 1.5 GB internally, 250M samples, min interval 0.1 seconds
• Power Supply: 19 to 50 volts DC / 16 to 35 volts AC or 85 to 260 volts AC/DC
• Environmental Protection: IP40 front panel
• Installation: Panel Mounted
• Dimensions: 1/4 DIN, 96 x 96 x 100 mm
• Special Features: Multichannel, touchscreen, bargraphs, charts
• Special Options: IP54 lockable transparent front panel door, IP65 front panel, datalogging, Ethernet coms

Product Description

A fully configurable touchscreen display allows the operator to choose which parameters to display on the MultiCon controller and data logger and in which graphical format such as chart, bargraph, dials or numeric values. To help with device configuration it is possible to connect a standard USB keyboard and mouse directly to the MultiCon.

The MultiCon logging controller can provide up to 8 proportional, integral and derivative (PID) control functions along with up to 12 separate On/Off alarm relays.

The internal datalogging memory of the MultiCon process controller can store up to 250 million samples of data with a 1.5GB memory capacity. The DAQ Manager datalogging desktop software package is used to retrieve data and groups it to produce graphs or tables.
