Pressure vs time data for 20000psi burst pressure test

We are interested in a set up that would allow us to gather pressure vs time data. we need a complete setup with gauge, data collection program, etc. We will be performing industrial hose burst tests and would like to record the data. The burst pressures will be as high as 20,000 psi.

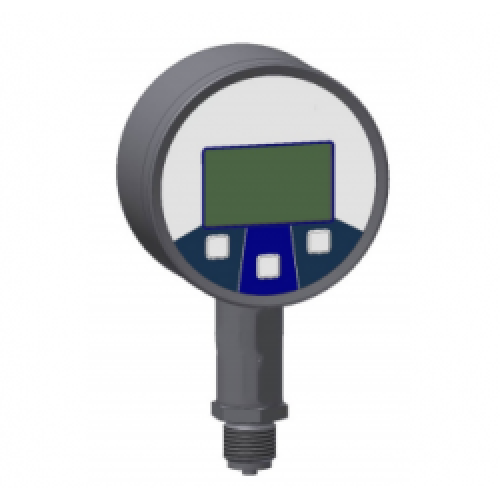

We would suggest a 2000 bar range DM01-500-HD which will read up to 29,000 psi.  The package specified below includes the battery power pressure gauge, internal data-logging memory, USB interface cable for the PC connection and the PC software for collecting the results.

• SKU ID: s1-dm01-500-hd-0004
• Pressure Datum: Gauge
• Pressure Range: 0 – 2000 bar / 0 – 29,000 psi
• Accuracy: <±0.05% / FS BFSL
• Process Connection: 9/16 UNF (1/4 AE HP type) Internal Thread
• Seal Material: All welded
• Supply Voltage: 3 x 1.5V, AA (LR6) batteries
• Process Connection Material: Stainless Steel 1.4542 (17-4 PH)
• Diaphragm Material: Stainless Steel 1.4301 (304)
• Media Temperature: -10 to +55°C
• Operating Temperature: -10 to +55°C
• Battery Life: 2000hrs at standard usage, 5yrs in Standby mode
• Resolution: 128px x 64px
• Display: 7 digit LC Display, 5.5mm Height
• Display: 55 x 46mm Visible area
• Display: 100 segment bargraph
• Display: Adjustable illuminated background, time & intensity
• Datalogging: 8500 Pressure & Temperature values
• Optional Extras: USB data cable & software
