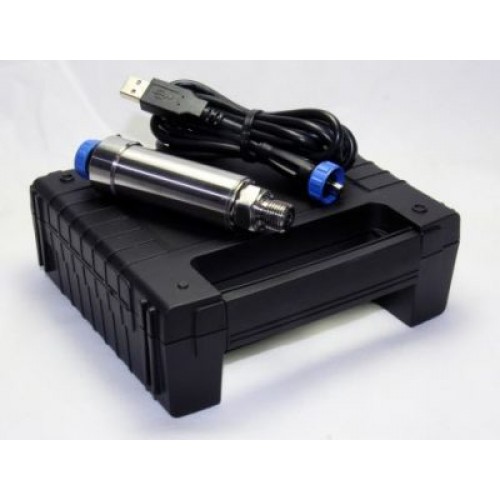

USB ready digital pressure sensor for recording pressures with a high speed sample rate of up to 1 kHz to a computer. The UPS-HSR is supplied with a 2m long USB cable, PC software and case. Choose a pressure range from -1 to 2.5 bar up to 5000 bar with a G1/4 or 1/4 NPT male up to 1500 bar, and AE F-250-C female for higher ranges.
Product Parameters
- Pressure Ranges: -1 to +2.5 bar…0 to 5000 bar sealed gauge
- Output Signal: USB
- Accuracy: 0.15% FS
- Electrical Connections: USB mini B cable
- Process Connections: G1/4 or 1/4 NPT ≤ 1500 bar, and AE F-250-C female > 1500 bar
- Media Compatibility: Titanium alloy
- Special Features: Sampling rate up to 1000 Hz, resolution of 21 bits ≤ 5 Hz, or 16 bits > 5 Hz
- C#, VB, Labview and Excel VBA compatible
Product Description
The UPS-HSR has been designed and developed for ease of use, reliable data collection and real time monitoring, to cover the majority of applications where a simple interface to a computer is required. Without the fuss of complicated interfaces, converters, external power supplies and USB driver issues, the UPS-HSR interface is simply a USB cable that powers the pressure sensor, self installs logging software on the computer and has automatic recognition of the sensors that connect to the software.
SensorsOne UPS-HSR USB Pressure Sensor with High Sample Rate Logging
- Product Code: UPS-HSR USB Pressure Sensor
- Availability: Pre-Order
-
Rp.0.00
- Ex Tax: Rp.0.00
