Product Parameters

• Pressure Ranges: 10, 20, 30, 50, 100, 200 and 300 mbar gauge and differential plus bi-directional ranges
• Pressure Accuracy: ±0.2%FS, over 10 to 40 DegC
• Temperature Measurement: 0 to +50 Deg C
• Temperature Accuracy: ±0.5 DegC
• Display: LCD, 9999 digits
• Data Storage: 57,000 readings with recording cycle < 15secs, 28,000 readings with recording cycle > 15secs
• Recording Interval: 1 per second minimum
• Power Supply: 3.6 Lithium battery powered, type SL-760, 5 years recording 1 reading/10secs, 2 years recording 1 reading/sec
• Environmental Protection: IP65
• Pressure Connection: G1/4 male
• Media Compatibility: Stainless steel 316L pressure port, NBR/Viton O ring seals and gold coated ceramic diaphragm
• Dimensions: 76mm x 118mm x 42mm
• Special Features: Pressure and temperature recording, download logging procedures via USB, Bluetooth or RS232 for remote logging, selectable pressure units, bar, mbar/hPa, kPa, MPa, psi & Kg/cm2
• Special Options: ATEX and IECEX approved version certified to II 2 G EEx ia IIC T4, traceable to international standards or UKAS laboratory cal cert

Product Description

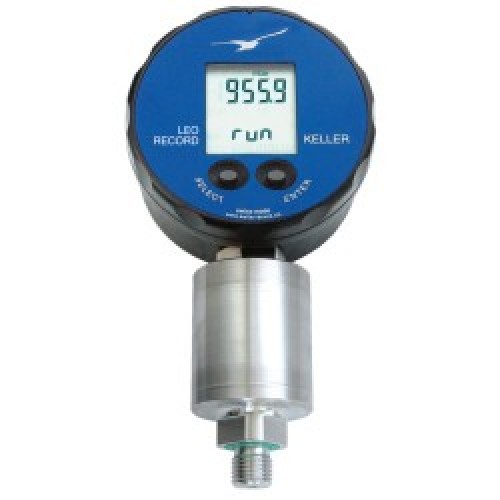

The LEO Record Capo low pressure logger uses a capacitive ceramic sensing diaphragm which is particularly suited for measuring low range air pressures.

Logging procedures are downloaded via a desktop, laptop or pocket PC computer using the Logger software provided and once the results have been recorded they are uploaded for future analysis and generation of reports. The data can also be easily exported in generic database file formats to other software applications.
